 Shear stress in Beam - Strength of Material

CIVIL ENGINEERING QUESTIONS

Question-Answer civil engineering study
Question-Answer civil engineering study

Previous year civil engineering questions related to strength of material (SOM) subject topic shear stress in Beam asked in UPSC ESE examination.






Shear Force per unit length = Hx = VAyI
Shear stress at the level y from N.A. = q = VAyIb

Shear stress in Rectangular beam
Shear stress in rectangular beam
Shear stress in rectangular beam

Shear stress in I section

shear stress in I section
shear stress in I section

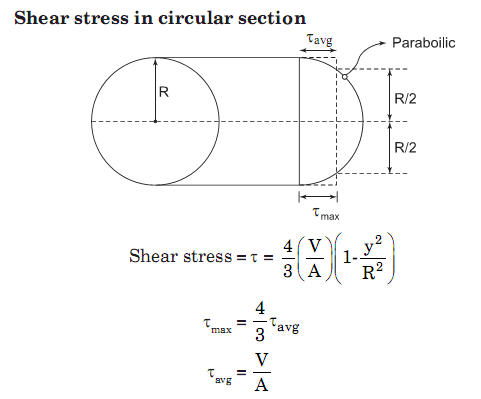

Shear stress in circular section

shear stress in circular section
shear stress in circular section

Shear stress in triangular section

Shear stress in triangular section
Shear stress in triangular section


Shear stress in Quadrilateral section about diagonal

Shear stress in Quadrilateral section about diagonal
